Material
Carbon Steel
Type
Flat countersunk head, cross recess
Size Range
M2–M10
Surface Finish
Zinc / Black / Nickel
Grade
4.8 / 8.8
Standard
DIN 965 / ISO 7046
Packaging
Carton / Pallet
MOQ
1 piece (sample)
Precision Manufacturing, Batch After Batch
From cold-heading raw steel wire to heat-treated finished bolts, every step runs under strict in-house process control — ensuring the dimensional accuracy and strength grade printed on every head marking.
Product Overview
Application Scenarios
Cross-recess countersunk (flat head) machine screws (DIN 965 / ISO 7046) have a 90° flat head driven by a Phillips cross recess, seating flush into a countersunk hole on a fully threaded machine-screw shank. They give a clean, snag-free flush finish and are widely used in electronics and electrical enclosures, appliances, sheet-metal and panel work, hinges, trim and general light assembly. Stainless versions suit visible, damp, outdoor and food-contact applications.
Installation Notes
Prepare a matching 90° countersunk hole so the flat head seats fully flush. Drive with the correctly sized Phillips bit — the recess number rises with screw size (PH1 for M3, PH2 for M4–M5, PH3 for M6, PH4 for M8–M10), and the wrong bit cams out and chews up the recess. These are machine screws: run them into a tapped hole, nut or captive thread rather than plain material. They are normally grade 4.8 or 8.8; a thread-locker resists loosening on vibration-prone joints, and a flush countersunk head seats on the workpiece without a washer.
Material & Certification
Manufactured from cold-heading quality carbon steel to grade 4.8 or 8.8 per ISO 898-1 and produced to DIN 965 / ISO 7046, with every batch traceable to raw material certificates. Each production run passes 100% dimensional and cross-recess gauge inspection before packaging; EN 10204 3.1 material certificates are available on request.

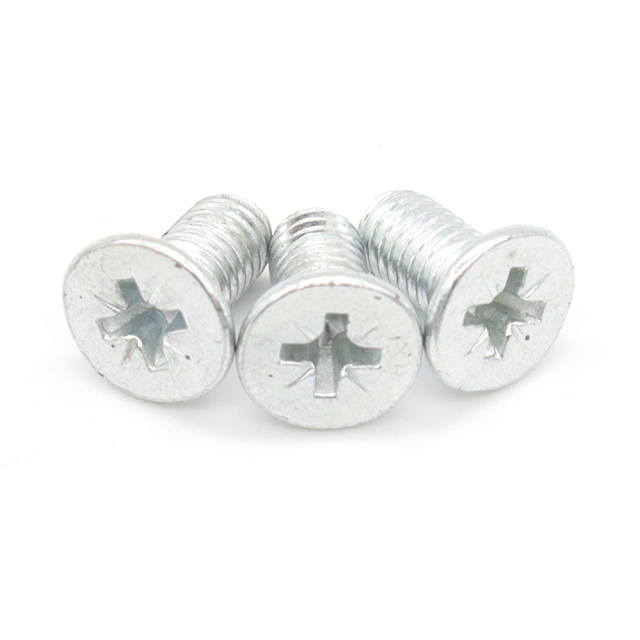

Cross Recess Countersunk Screw
Carbon Steel Countersunk Cross Recess Screw · Grade 4.8 / 8.8 · DIN 965
Dimensional Specifications
DIN 965 / ISO 7046 Standard Reference Dimensions — click a size to locate it below
| Thread Size | Head Dia dk (mm) | Head Height k (mm) | Cross Recess (No.) |
|---|---|---|---|
| M3 | 5.6 | 1.65 | PH1 |
| M4 | 7.5 | 2.2 | PH2 |
| M5 | 9.2 | 2.5 | PH2 |
| M6 | 11.0 | 3.0 | PH3 |
| M8 | 14.5 | 4.0 | PH4 |
| M10 | 18.0 | 5.0 | PH4 |
Reference dimensions per DIN 965 / ISO 7046 standard. Full size range M2–M10 available on request — contact us for custom specification sheets.
Applications
Construction
Steel structures, bridges, buildings, concrete anchors
Machinery
Heavy equipment, industrial machines, manufacturing
Infrastructure
Railways, towers, pipelines, power transmission
Automotive
Vehicle assembly, chassis, engine components
